Hybrid Pumps

Cornell Pump hybrid pumps are able to handle dirty water and viscous slurries. They can handle small solids and high operating pressures for up to 800′ of head. Hybrid pumps are ideal for applications in the mining, oilfield, and construction industries. Dewatering and water transfer are common uses for hybrid pumps.

MX-Series Pumps

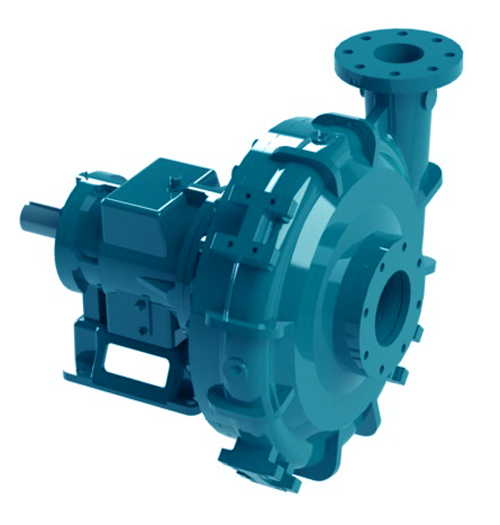

4622MX-high-headDesigned to handle high head applications, MX pumps are used in many mining, agricultural, and industrial dewatering applications due to their long service life and suction lift capabilities. The high head MX Series pumps have multi-vane, enclosed impellers designed for industry leading efficiency, and are available in a horizontal frame & SAE engine mounted configurations.

Features and Benefits:

  • Up to 25 feet of suction lift
  • Heads to 800 feet
  • Flows to 8,000 GPM
  • Extra heavy wall thickness
  • High quality construction
  • Robust Mount Frame with mounting surfaces
  • CA6NM impellers
Model Discharge Suction Solids Handling Data Sheet
2415MX 2" 4" .62" Data Sheet
3419MX 3" 4" .75" Data Sheet
3617MX 3" 6" .75" Data Sheet
4622MX 4" 6" .98" Data Sheet
6822MX 6" 8" 2" Data Sheet
81024MX 8" 10" 2.38" Data Sheet
81026MX 8" 10" 2.38" Data Sheet
