Clear Liquid Pumps

Cornell’s clear liquid pumps are known around the world as the most durable, most reliable, highest efficient pumps in the industry. They can be found in a variety of applications in the Agricultural, Industrial, and Municipal markets and are available in Close-Coupled, SAE Engine Mounted, Horizontal, and Vertical Configurations.

The unique pushed-out rectangular design features of the Cornell frame will let you know it is Cornell pump.

W, Y, R, & H Series Pumps

Clear-Water-4HHCornell clear liquid centrifugal pumps are found in many agricultural irrigation applications.These pumps are designed to deliver best-in-class efficiency. Depending on operating hours, fuel, and horsepower required, you can save thousands per year in energy costs. Cornell offers a large selection of clear liquids pumps that meet or exceed optimum efficiency standards for centrifugal pumps.

Features and Benefits:

  • Replaceable wear rings
  • Double volute
  • Various mounting configurations available, including close coupled, frame mounted, and engine-mounted
  • Robust Mount Frame with mounting surfaces
  • Shower curtain shield on close-coupled models
  • Oversized bearings
  • High efficiency, fully-machined impellers
  • Efficiencies up to 89%
  • Heavy walled castings
  • External balance line
  • Two-year warranty
Model Discharge Suction Solids Handling Data Sheet
1WC 1" 1.5" Data Sheet
1.25YML 1.25" 3" Data Sheet
1.5WH 1.5" 2" Data Sheet
1.5YH 1.5" 2" Data Sheet
2WH 2" 2.5" Data Sheet
2YH 2" 2.5" .31" Data Sheet
2.5H-CC 2.5" 4" .41" Data Sheet
2.5RB 2.5 4 .38" Data Sheet
2.5WH 2.5" 3" .5" Data Sheet
2.5YH 2.5" 4" .5" Data Sheet
2.5YM 2.5" 4" .88" Data Sheet
3HA 3" 6" .5" Data Sheet
3HC 3" 6" .5" Data Sheet
3HM 3" 5" 1" Data Sheet
3RB-F 3" 5" .5" Data Sheet
3RB-CC 3" 5" .5" Data Sheet
3RC 3" 6" .5" Data Sheet
3WH 3" 4" .5" Data Sheet
3WM 3" 4" 1.2" Data Sheet
3YH 3" 4" .5" Data Sheet
3YL 3" 4" .5" Data Sheet
4HC 4" 6" .62" Data Sheet
4HH-CC 4" 6" .62" Data Sheet
4HH-F 4" 6" .62" Data Sheet
4HM 3" 5" 1" Data Sheet
4RB-F 4" 6" .84" Data Sheet
4RB-CC 4" 6" .84" Data Sheet
4RC 4" 6" .84" Data Sheet
4WH 4" 5" 1.19 Data Sheet
4YB 4" 6" .75" Data Sheet
5H-CC 5" 8" .97" Data Sheet
5H-F 5" 8" .97" Data Sheet
5HH-CC 5" 8" 1" Data Sheet
5HH-F 5" 8" 1" Data Sheet
5WBH 5" 8" .75" Data Sheet
5WBQ 5" 8" .75" Data Sheet
5YBH 5" 8" .75" Data Sheet
5YBQ 5" 8" .75" Data Sheet
5RB-F 5" 8" 1" Data Sheet
5RB-CC 5" 8" 1" Data Sheet
6H-CC 6" 8" 1.12" Data Sheet
6HH-CC 6" 8" 1.22" Data Sheet
6H-F 6" 8" 1.12" Data Sheet
6RB-F 6" 10" 1.31" Data Sheet
6RB-CC 6" 10" 1.31" Data Sheet
6RC 6" 10" 1.31" Data Sheet
6YB 6" 10" .75" Data Sheet
6YBQ 6" 10" .75" Data Sheet
8H-CC 8" 10" 1.25" Data Sheet
8H-F 8" 10" 1.25 Data Sheet
10RB-F 10" 10" 1.25" Data Sheet
10RB-CC 10" 10" 1.25" Data Sheet
10YB 10" 10" 1.38" Data Sheet
10YBQ 10" 10" 1.38" Data Sheet

V-Series Pumps

V-Series-PumpMedium duty centrifugal pumps, available in horizontal close coupled and vertical mounts. Engineered to handle general purpose applications, with cost-efficient construction. V-Series pumps are durable and available in wide flow and head capabilities.

Features and Benefits:

  • Cornell quality and durability
  • ODP 1800/3600 RPM motor standard
  • Efficiencies up to 80%
  • Replaceable suction wear ring and shaft sleeve
  • Back pull-out design
  • Exceptional pricing
Model Discharge Suction Solids Handling Data Sheet
1VH 1" 2" .31" Data Sheet
1VL 1" 2" .38" Data Sheet
1.5VH 1.5" 2" .31" Data Sheet
1.5VL 1.5" 2" .38" Data Sheet
2VH 2" 2.5" .25" Data Sheet
2VL 2" 2.5" .62" Data Sheet
2.5VH 2.5" 3" .5 Data Sheet
3VH 3" 4" .62" Data Sheet

MX-Series Pumps

4622MX-high-headDesigned to handle high head applications, MX pumps are used in many mining, agricultural, and industrial dewatering applications due to their long service life and suction lift capabilities. The high head MX Series pumps have multi-vane, enclosed impellers designed for industry leading efficiency, and are available in a horizontal frame & SAE engine mounted configurations.

Features and Benefits:

  • Up to 25 feet of suction lift
  • Heads to 800 feet
  • Flows to 8,000 GPM
  • Extra heavy wall thickness
  • High quality construction
  • Robust Mount Frame with mounting surfaces
  • CA6NM impellers
Model Discharge Suction Solids Handling Data Sheet
2415MX 2" 4" .62" Data Sheet
3419MX 3" 4" .75" Data Sheet
3617MX 3" 6" .75" Data Sheet
4622MX 4" 6" .98" Data Sheet
6822MX 6" 8" 2" Data Sheet
81024MX 8" 10" 2.38" Data Sheet
81026MX 8" 10" 2.38" Data Sheet

Edge End Gun Booster Pumps

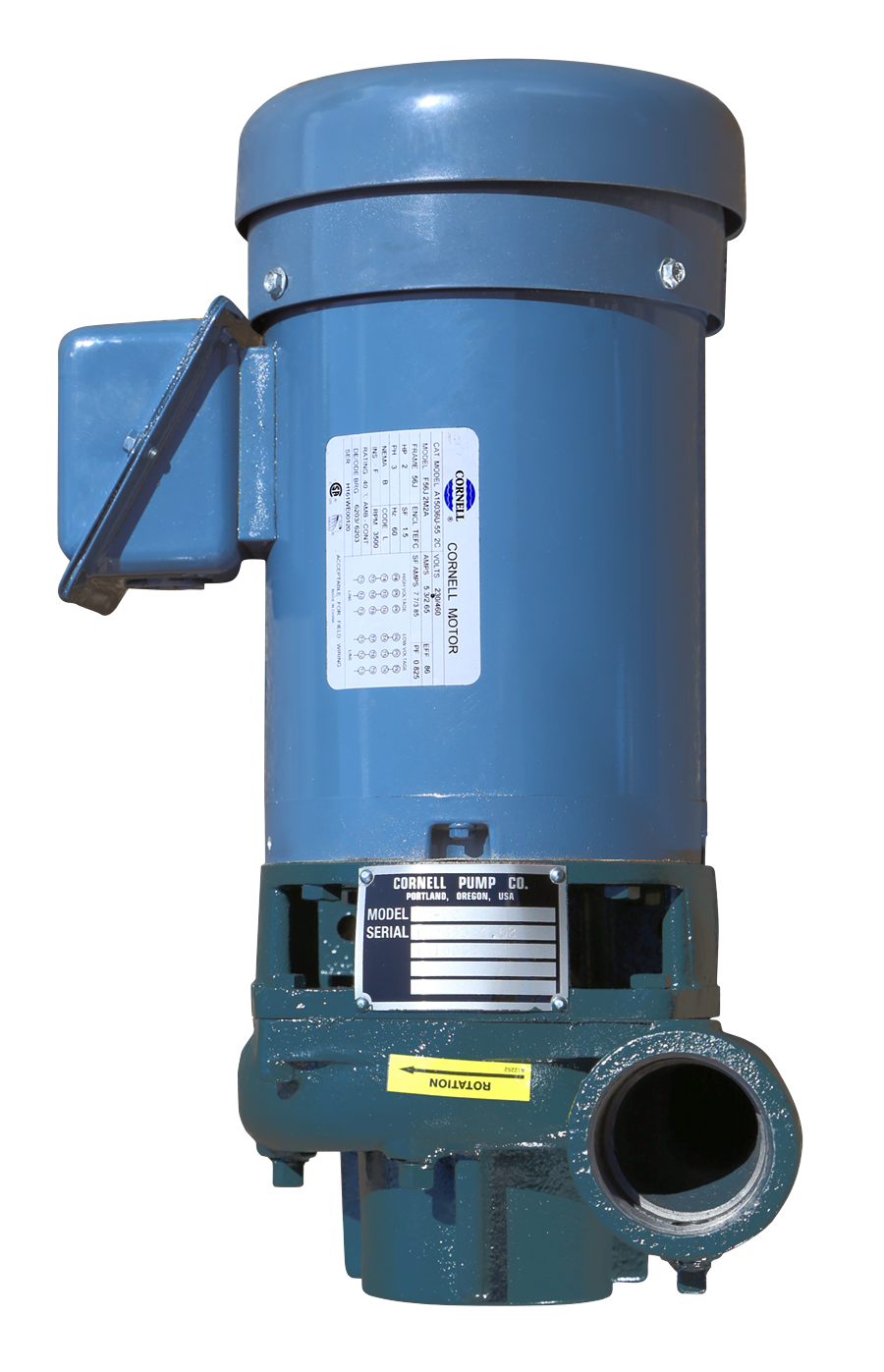

2C-Corrections-ClippedCornell’s EDGE™ End Gun Booster pump for Center Irrigation Pivots are designed as a retrofit for pivot systems. The competitively-priced 3HP and 5HP End Gun Booster pumps feature Cornell’s legendary design and reliability and are typically available to ship immediately.

Features and Benefits

  • Discharge size: 2″ / Suction size: 2.5″
  • 2B: 230 GPM and 130′ max head
  • 2C: 130 GPM and 80′ max head
  • Ideally suited for OEM center pivot booster applications
  • Rotating assembly retrofits into Berkeley’s volute
  • Performance meets or exceeds competition
  • 2B: Single mechanical seal
  • Heavy-duty cast iron construction
  • “Shower-Curtain” shield for motor moisture protection
  • Motor built to Cornell specifications
  • Off-the-shelf availability from multiple locations
  • Two-year factory warranty
Model Discharge Suction Solids Handling Data Sheet
2C 2" 2.5" Data Sheet
2B 2" 2.5" Data Sheet

Q-Max Pumps

Redesigned Cornell legacy high flow low head pumps that combine the robust performance of previous versions, while driving down costs for end users. Useable in all clear water applications, including agricultural, industrial, municipal, and rental settings.

Q-Max features:

  • Flows 540 to 5,100 GPM
  • Efficiencies up to 86%
  • Competitive Pricing
  • Available in all mounting configurations (CC, Frame and SAE)
  • Robust Mount Frame with mounting surfaces
  • Packing or Cycloseal® mechanical seal
  • Back pullout construction
  • Cast iron construction with bronze wear rings
  • Two year warranty
  • 20,000 hour minimum B-10 bearing life
Model Discharge Suction Solids Handling Data Sheet
5WBQ 5" 8" .75" Data Sheet
5YBQ 5" 8" .75" Data Sheet
6YBQ 6" 10" .75" Data Sheet
10YBQ 10" 10" 1.38" Data Sheet
